Omega & Blancpain Come Together To Manufacture A New Chiming Movement

THM Desk
26 Oct 2022 |
clock icon5 min read
like image
comment icon image
like image
SUMMARIZEarrow down

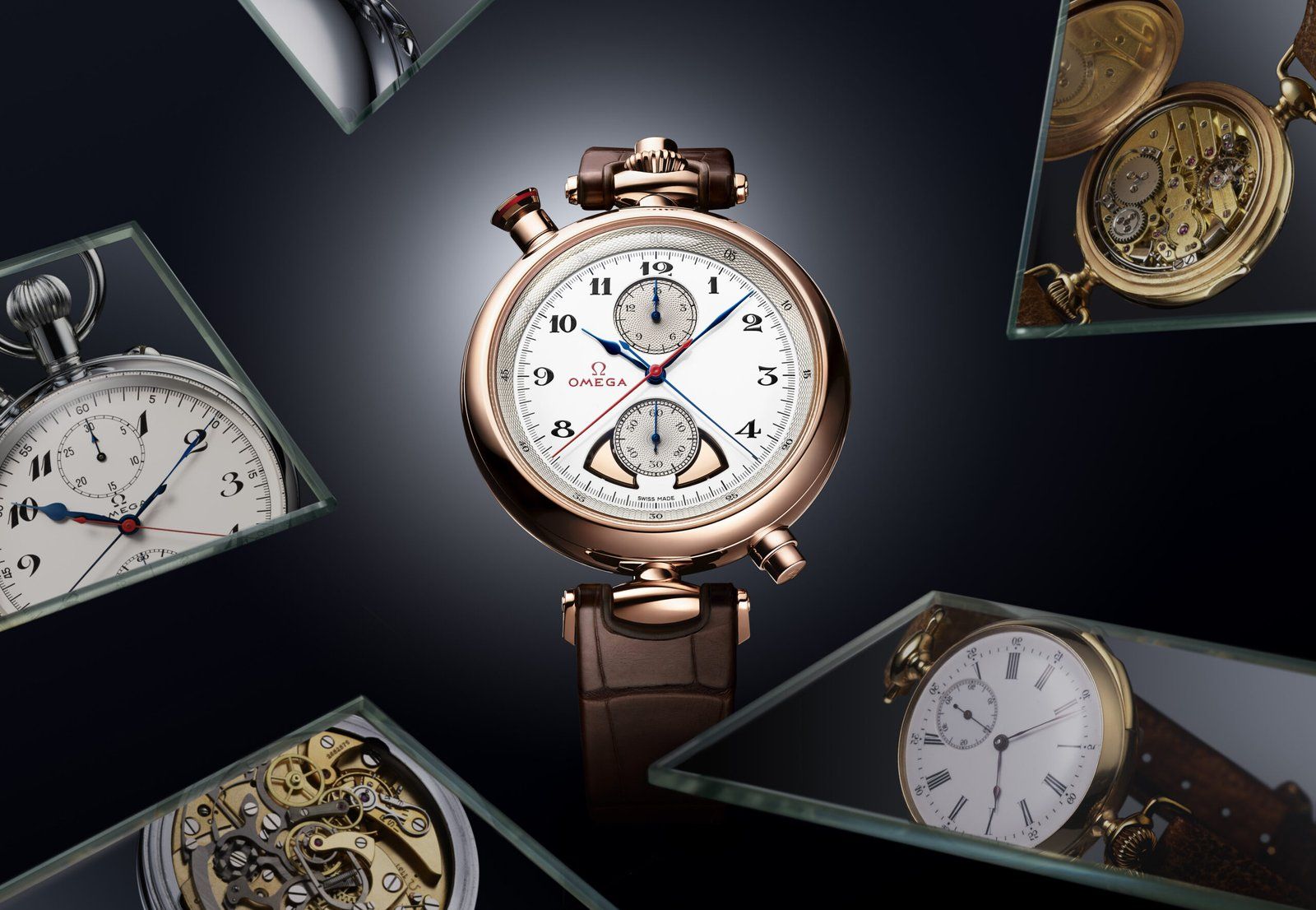

Many great designs emerged in the transition period between the pocket and wristwatch, and the look of the watch draws its cues from that inventive era. A movement, however, is the first of its kind. A cutting-edge calibre destined to make its own mark on watchmaking history.

Chrono Chime (close-up)
Chrono Chime (close-up)

Here is a power source unlike any other. As it was not possible to modify existing components, OMEGA’s watchmakers were compelled to create the calibre from scratch – and by hand. OMEGA’s Co-Axial Master Chronometer Calibre 1932 is a fully integrated chronograph and minute repeater. Produced not by layering, tinkering or fitting new parts to old, but by fusing both functions together in one watch movement. It is in fact the most complicated calibre OMEGA has ever made. In order for a wearer to chime the elapsed time, safely and seamlessly, it requires its own mechanical “brain” to merge the functions perfectly.

1932 recto_A4.jpg (1)

Developed with sister company Blancpain, the 1932 movement took six years to complete - and there were many challenges along the way. In fact, before they could even begin, the watchmakers had to find a way to expand the existing boundaries of OMEGA’s famous Co-Axial escapement. The system, developed by the brilliant watchmaker Georges Daniels, is an essential component in all of OMEGA’s movements. Designed to operate at a relatively standard frequency (between 3 and 4 Hz), it presented a major constraint when developing the new movement, which must beat at 5 Hz to display 1/10th of a second, like the pocket chronographs used to time the Los Angeles 1932 Olympic Games. It didn’t stop there. The watchmakers would also have to add three chime cams to the already complicated chronograph mechanism, include two security functions to prevent mal-manipulation, and integrate a split-seconds function. What’s more, to achieve Master Chronometer status, the calibre would have to withstand external magnetic fields of 15,000 gauss, requiring the use of 50 non-ferrous components.

1932 verso_A4.jpg (1)

Of course, to create a calibre from scratch required multiple innovations. Proof of the Chrono Chime’s complexity can be seen - and counted. OMEGA’s extraordinary invention required up to 17 patents, related to the function of the Calibre 1932, its antimagnetic technology and the watch’s external parts. In addition to being a technological marvel, it is a thing of beauty. Satin-brushed and mirror polished. A luxurious handmade calibre with 46.44 grams of gold. Easy on the eye - and the ear.


Chrono Chime Olympic_ambiance.jpg (1)

OMEGA’s extraordinary 14-ligne Ø 32.5 mm 1932 calibre powers a masterpiece in 18K Sedna™ Gold. It has a “Grand Feu” enamel dial, graced with a 925 Silver hand-made guilloché inner bezel and subdials in OMEGA’s unique “exclusive acoustic waves” pattern: an exact visual representation of the soundwaves produced by the watch’s chimes. As well as being strikingly good looking, OMEGA’s 18K Sedna™ Gold produces a beautiful sound when struck. Double hammers, fitted with an insert of hardened steel, hit pitch-perfect 18K Sedna™ Gold gongs, hand-tuned by OMEGA’s watchmakers. These gongs, fixed to the case body to produce maximum chime, are a respectful nod to the bells used by OMEGA to signal the last lap at the Olympic Games and other sporting events. Bronze-age timekeeping technology still in use.

Chrono Chime Olympic.jpg (1)

On the dial, the 18K Sedna™ Gold central hour/minute hands are in blued PVD, as are the subdial hands on the small seconds at 6 o’clock and 15-minute recorder at 12 o’clock. For easy readability, the display includes a blued CVD central seconds hand and red-var - nished split-seconds hand. There is a further tribute to 1932 in the Arabic numerals and minute track in black “Petit Feu” enamel. Pushers are primarily functional, but as always, OMEGA has added an extra touch of elegance to make the action of timing an aesthetic experience. The chime pusher at 5 o’clock sports a charming polished and embossed music note. The split-seconds pusher at 11 o’clock has a polished ring filled in with red hybrid ceramic to mirror the look of the split-seconds hand.

Chrono Chime Olympic_dos.jpg (1)
Chrono Chime (case-back)

Beautifully engraved on the caseback are the words Official Timekeeper of the Olympic Games, Co-Axial Master Chronometer and the watch’s number. The brown leather strap with 18K Sedna™ Gold buckle includes OMEGA’s new Quick-Change patented system – and for a very practical reason. The special presentation box includes an additional leather strap and two leather cords, allowing the “timekeeper” to wear it as a discreet pocket watch or a stopwatch around the neck. The walnut presentation box also sounds as good as it looks. It features a resonance plate made of spruce to amplify the precise rhythm, tone, harmony and length of each chime.


Omega Speedmaster Chrono Chime
Omega Speedmaster Chrono Chime

For those who prefer their watches fixed firmly to the wrist, OMEGA has produced a Speedmaster powered by the 1932 Calibre. The classic 45 mm “Numbered Edition” Chrono Chime has an 18K Sedna™ Gold case inspired by the 2nd generation Speedmaster, making it a commemorative piece in its own right, as the CK 2998 was the first watch worn in space 60 years ago in 1962.

The dial, in blue aventurine “Grand Feu” enamel, features an inner bezel and subdials in the same 18K Sedna™ Gold “exclusive acoustic waves” as the Olympic Games tribute. The hour markers and hour/minute hands are in diamond-polished 18K Sedna™ Gold. Blued CVD subdial hands and a red-tipped dial hand add extra touches of colour to the display. Although the movement is the same for both watches, the functional and decorative pushers are in different positions.

Chrono Chime Speedmaster
Chrono Chime Speedmaster

With a chime at 8 o’clock and split seconds at 2 o’clock. For the Speedmaster, OMEGA’s ingenious watchmakers turned the calibre around to suit the configuration of the case and accommodate the two subdials. Completing the look is a bracelet and buckle in 18K Sedna™ Gold. Collectors of the Speedmaster will also receive the special walnut presentation box with resonance plate.

This striking new numbered edition links the world’s first minute repeater wristwatch - produced by OMEGA in 1892 - to the pocket chronographs used to time the Los Angeles 1932 Olympic Games, which marked OMEGA’s debut as Official Timekeeper.
